It is a horizontal multistage high-pressure pump with a power of 55 kW. According to the customer's request, the pump body is customized in blue

 The Rwandan customer visited our factory before shipment to inspect the facilities and witness the pump testing process. They were very satisfied with the pump's manufacturing process and witnessed the entire testing procedure, confirming that the pump's parameters fully met their requirements.

Introduction to D series horizontal multi-stage centrifugal pump

Overview

This series of pump is of sub-horizontal, multi-stage single-suction and centrifugal, using state-recommended hydro-module. The pump is efficient, reliable, and durable with low noise performance, easy maintenance and wide scope of usages.

Our pump is applicable to deliver those fluid without solid, particles or any other suspended stuff, water for instance. While oily and corrosive or solid-contained fluid can be pumped by means of material modification, sealing methods, and cooling system adding.

The max. inlet pressure shall be 0.6MPa.



D type applicable:



Used for transmission of water free of solid particles and temperature below 80 ℃, or similar physical and chemical liquid. Suitable for mining, mill and city water supply and drainage.





Performance Range：



Inlet and outlet diameter of the pump: 40–300mm

Capacity Q：3.75～850m³/h
Head H：19～816m



Product features

That suction inlet is set horizontally while discharging outlet vertically is one of peculiarities for D horizontal, single suction, segmental multistage pumps. The segments of suction, middle, discharging are connected by means of bolt. The head employs the stages of the pump.

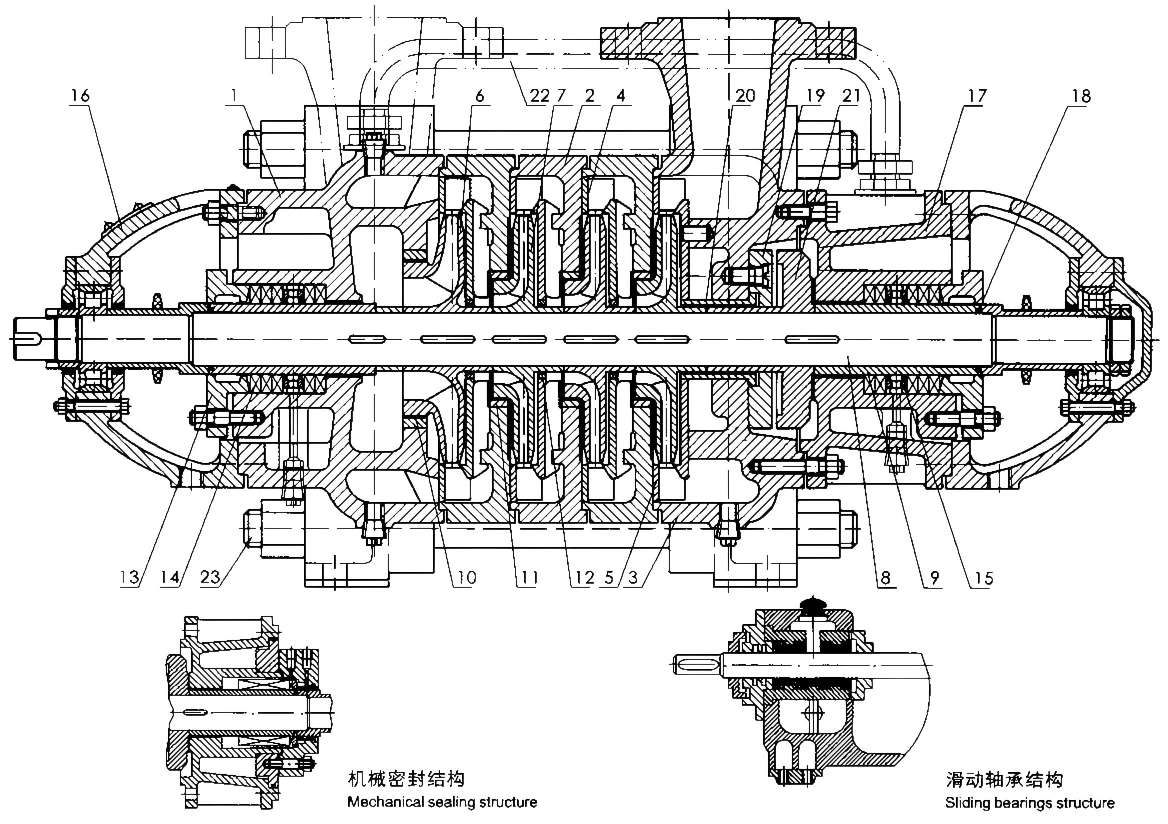

Structure diagram









1 进水段 / Suction casing	2 中段 / Stage casing	3 出水段 / Discharge casing	4 导叶 / Guide vanes	5 末导叶 / End of guide vanes	6 前级叶轮 / Front-stage Impeller
7 叶轮 / Impeller	8 轴 / Shaft	9 轴套 / Shaft sleeve	10 前级密封环 / Front-stage Sealing rings	11 密封环 / Sealing rings	12 导叶套 / Guide vane sleeve
13 填料压盖 / Gland cover	14 填料 / Gland packing	15 填料环 / Seal cage	16 轴承部件 / Bearing components	17 尾盖 / End Gland	18 O 形密封圈 / O-ring
19 平衡环 / Balancing ring	20 平衡套 / Balancing sleeve	21 平衡盘 / Balancing disk	22 平衡管部件 / Balance tube parts	23 拉紧螺栓 / Tie bolt

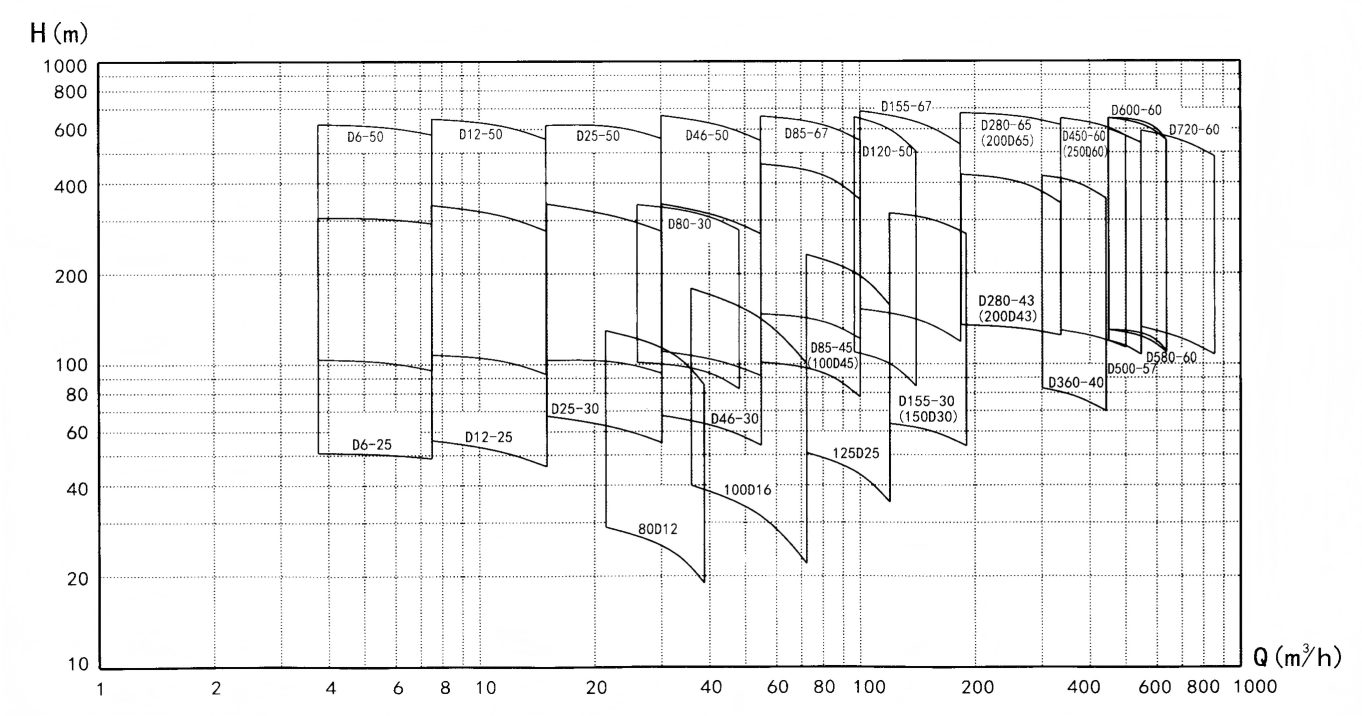

Type Spectrum

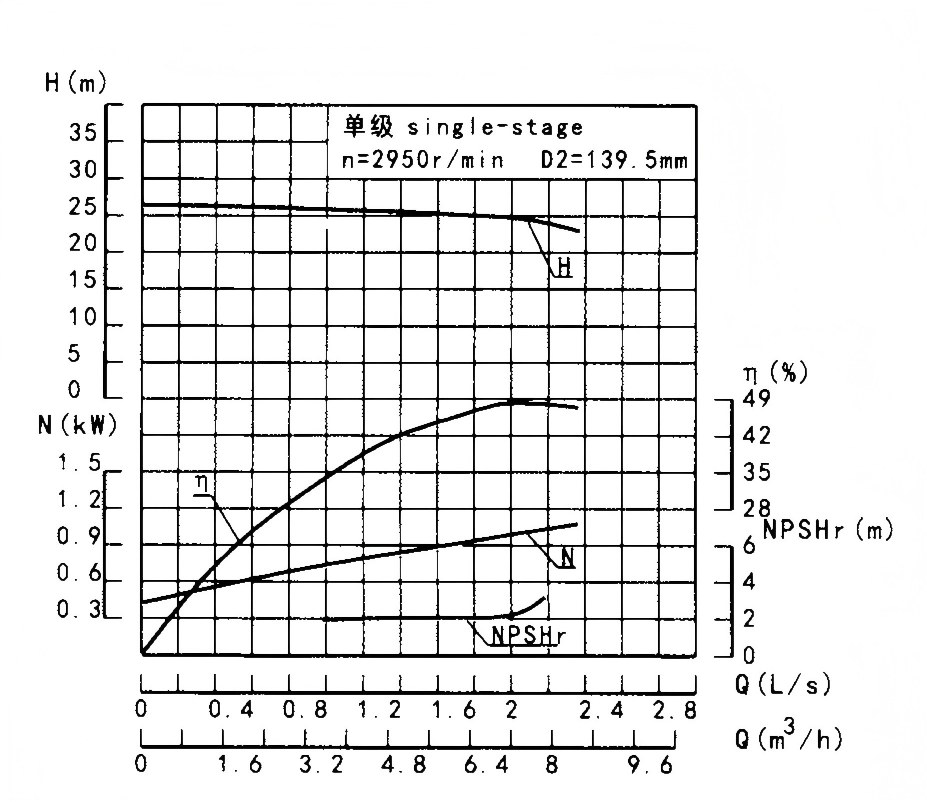

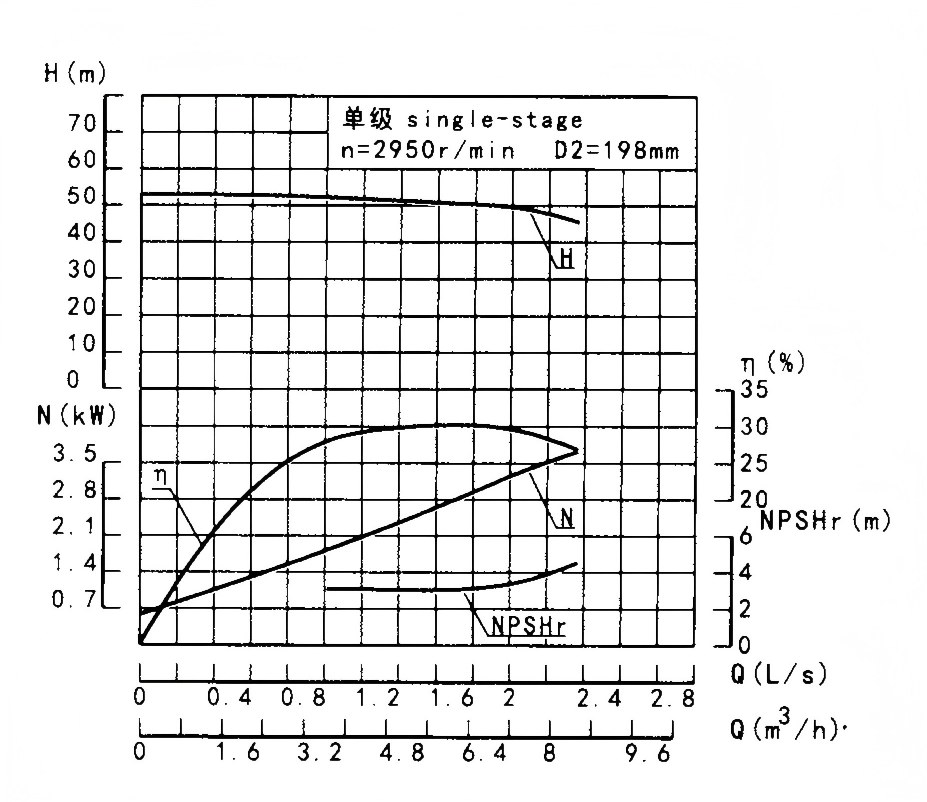

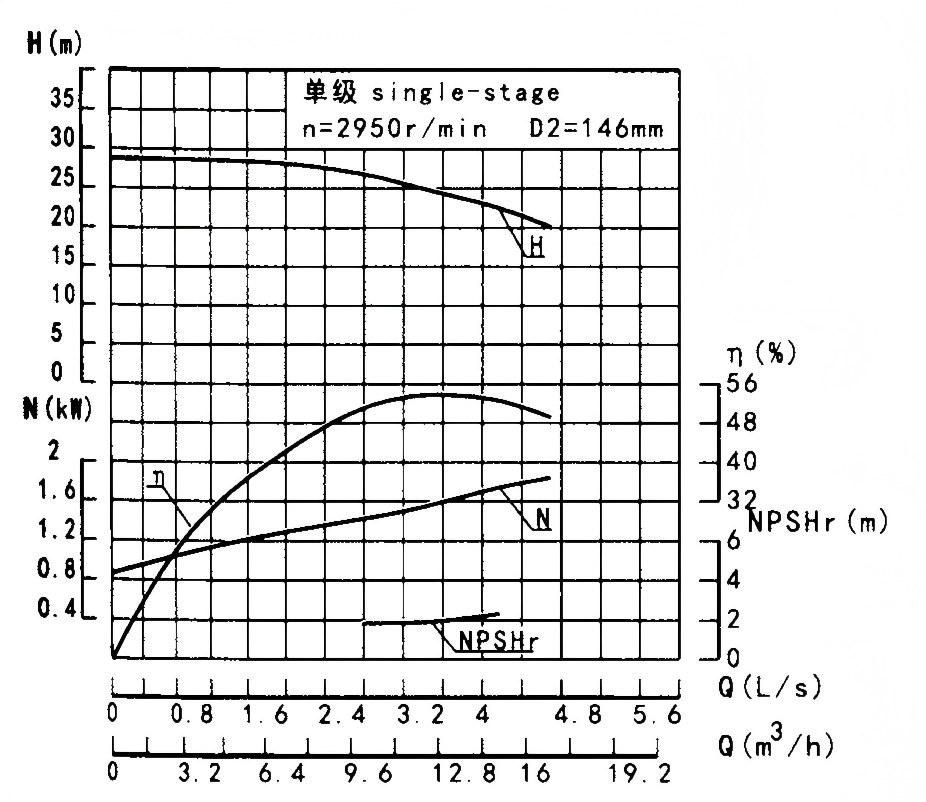

performance curve



D 6-25x（2~12）







D 6-50 x（2~14）



D 12 - 25 x（2~12）
