The motor casing is made of high-quality stainless steel material, and the motor is self cooled by water. When the pump is working, the motor part can be exposed to the water for long-term operation, avoiding the fatal problem of only allowing a small part of the motor to be exposed during the operation of domestic sewage pumps, otherwise it may cause the motor to burn out. Unique pump design: The channel impeller has high efficiency and non clogging characteristics, with a maximum particle diameter of up to 100mm.
Modèle :
50WQ10-10-0.75BCalibre d'exportation (DN) :
50Débit nominal (m³/h) :
10Hauteur manométrique nominale (m) :
10Vitesse du moteur (tr/min) :
2900Puissance du moteur (kW) :
0.75Matériel :
cast iron materialPrix FOB (USD$) :

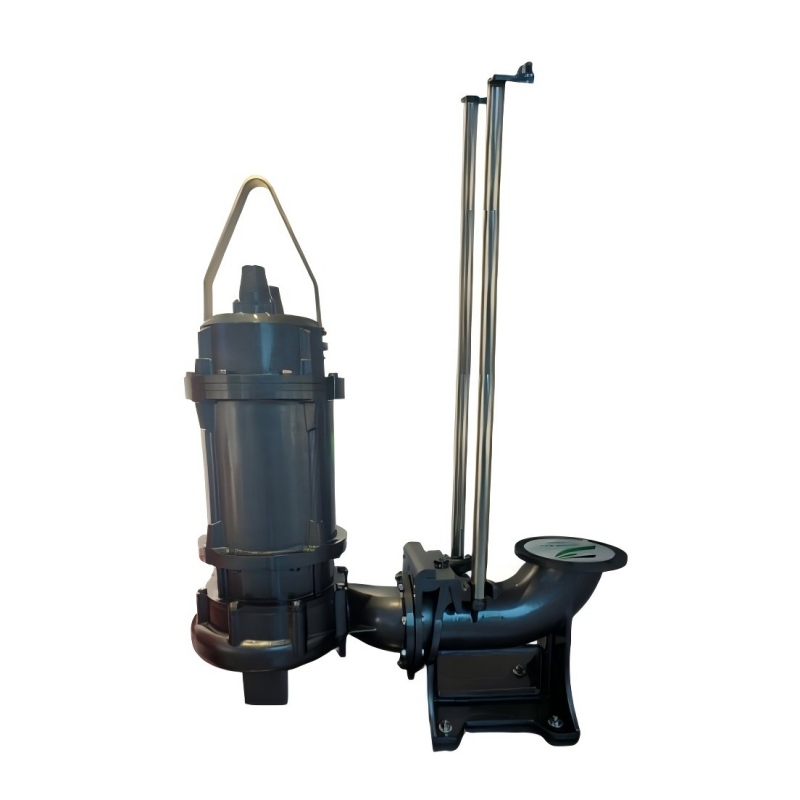

96Sewage submersible electric pump
This series of electric pumps is a self-developed product with efficient and energy-saving effects, widely used in industrial, agricultural, construction, municipal environmental protection and other places. It has the following characteristics:
1. Imported NSK bearings;
2.304 stainless steel rotor shaft, 304 stainless steel screws;
3. Motor insulation level F;
4. Stainless steel self cooling system; Compared to ordinary water pumps, this pump has advantages such as stable performance, high work efficiency, and long service life.
1. Medium temperature not exceeding +40℃
2. The pH value of the medium is between 4 and 10
3. The maximum density of the medium is 1050kg/m³
4. The power frequency is 50Hz, and the voltage fluctuation range is 0.9-1.1 times the rated value
5. Diving depth not exceeding 5m

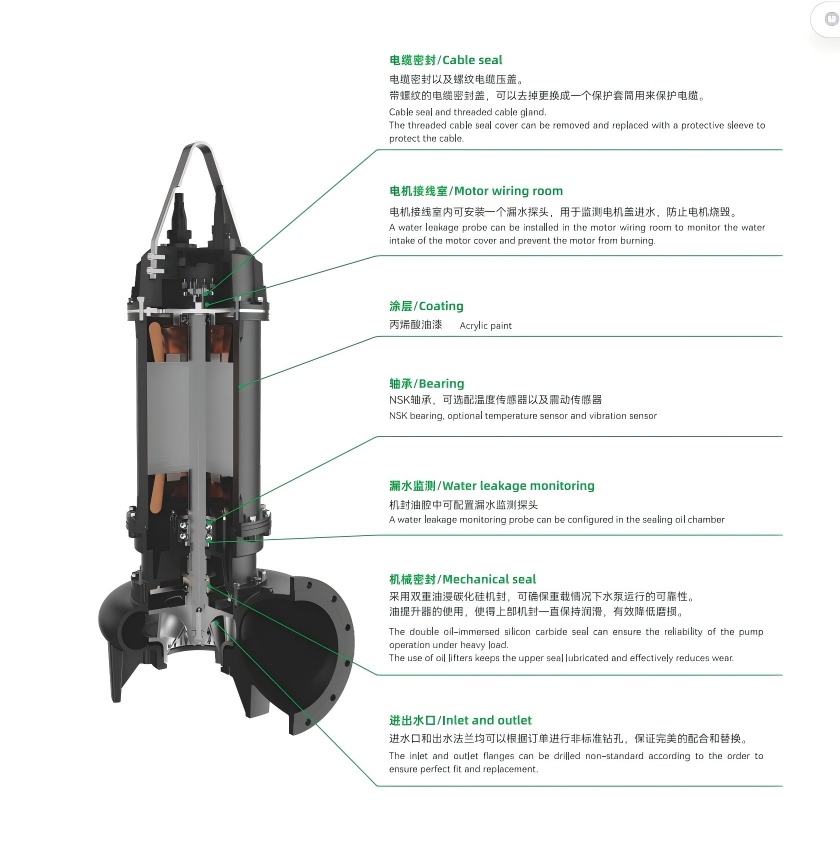

Exploded view
Technical Parameter
|
序号 NO. |
规格型号 / Model |
口径 Pipe diameter (mm) |
额定流量 Rated flow (m³/h) |
额定扬程 Rated head (m) |
功率 Power (KW) |
电压 Voltage (V) |
同步转速 Synchronous (r/min) |
| 1 | 50WQ10-10-0.75B(G) | 50 | 10 | 10 | 0.75 | 380 | 2900 |
| 2 | 50WQD10-10-0.75B(G) | 50 | 10 | 10 | 0.75 | 220 | 2900 |
| 3 | 50WQ10-12-1.1B(G) | 50 | 10 | 12 | 1.1 | 380 | 2900 |
| 4 | 50WQD10-12-1.1B(G) | 50 | 10 | 12 | 1.1 | 220 | 2900 |
| 5 | 50WQ15-15-1.5B(G) | 50 | 15 | 15 | 1.5 | 380 | 2900 |
| 6 | 50WQD15-15-1.5B(G) | 50 | 15 | 15 | 1.5 | 220 | 2900 |
| 7 | 65WQ18-15-1.5B(G) | 65 | 18 | 15 | 1.5 | 380 | 2900 |
| 8 | 65WQD18-15-1.5B(G) | 65 | 18 | 15 | 1.5 | 220 | 2900 |
| 9 | 50WQ15-20-2.2B(G) | 50 | 15 | 20 | 2.2 | 380 | 2900 |
| 10 | 50WQD15-20-2.2B(G) | 50 | 15 | 20 | 2.2 | 220 | 2900 |
| 11 | 50WQ10-30-2.2B(G) | 50 | 10 | 30 | 2.2 | 380 | 2900 |
| 12 | 50WQD10-30-2.2B(G) | 50 | 10 | 30 | 2.2 | 220 | 2900 |
| 13 | 65WQ25-18-2.2B(G) | 65 | 25 | 18 | 2.2 | 380 | 2900 |
| 14 | 65WQD25-18-2.2B(G) | 65 | 25 | 18 | 2.2 | 220 | 2900 |
| 15 | 80WQ45-9-2.2B(G) | 80 | 45 | 9 | 2.2 | 380 | 2900 |
| 16 | 80WQD45-9-2.2B(G) | 80 | 45 | 9 | 2.2 | 220 | 2900 |
| 17 | 50WQ25-20-3B(G) | 50 | 25 | 20 | 3 | 380 | 2900 |
| 18 | 50WQ8-34-3B(G) | 50 | 8 | 34 | 3 | 380 | 2900 |
| 19 | 65WQ35-17-3B(G) | 65 | 35 | 17 | 3 | 380 | 2900 |
| 20 | 80WQ50-10-3B(G) | 80 | 50 | 10 | 3 | 380 | 2900 |
| 21 | 50WQ15-30-4B(G) | 50 | 15 | 30 | 4 | 380 | 2900 |
| 22 | 65WQ25-28-4B(G) | 65 | 25 | 28 | 4 | 380 | 2900 |
| 23 | 80WQ50-17-4B(G) | 80 | 50 | 17 | 4 | 380 | 2900 |
| 24 | 100WQ80-10-4B(G) | 100 | 80 | 10 | 4 | 380 | 2900 |
| 25 | 50WQ10-40-5.5B(G) | 50 | 10 | 40 | 5.5 | 380 | 2900 |
| 26 | 65WQ25-32-5.5B(G) | 65 | 25 | 32 | 5.5 | 380 | 2900 |
| 27 | 80WQ50-20-5.5B(G) | 80 | 50 | 20 | 5.5 | 380 | 2900 |
| 28 | 100WQ65-15-5.5B(G) | 100 | 65 | 15 | 5.5 | 380 | 2900 |
| 29 | 50WQ15-50-7.5B(G) | 50 | 15 | 50 | 7.5 | 380 | 2900 |
| 30 | 65WQ40-30-7.5B(G) | 65 | 40 | 30 | 7.5 | 380 | 2900 |
| 31 | 80WQ50-25-7.5B(G) | 80 | 50 | 25 | 7.5 | 380 | 2900 |
| 32 | 100WQ80-21-7.5B(G) | 100 | 80 | 21 | 7.5 | 380 | 2900 |
| 33 | 150WQ150-10-7.5B(G) | 150 | 150 | 10 | 7.5 | 380 | 2900 |
Note: WQ can be upgraded to automatic mixing or equipped with a mixing impeller or stainless steel impeller
