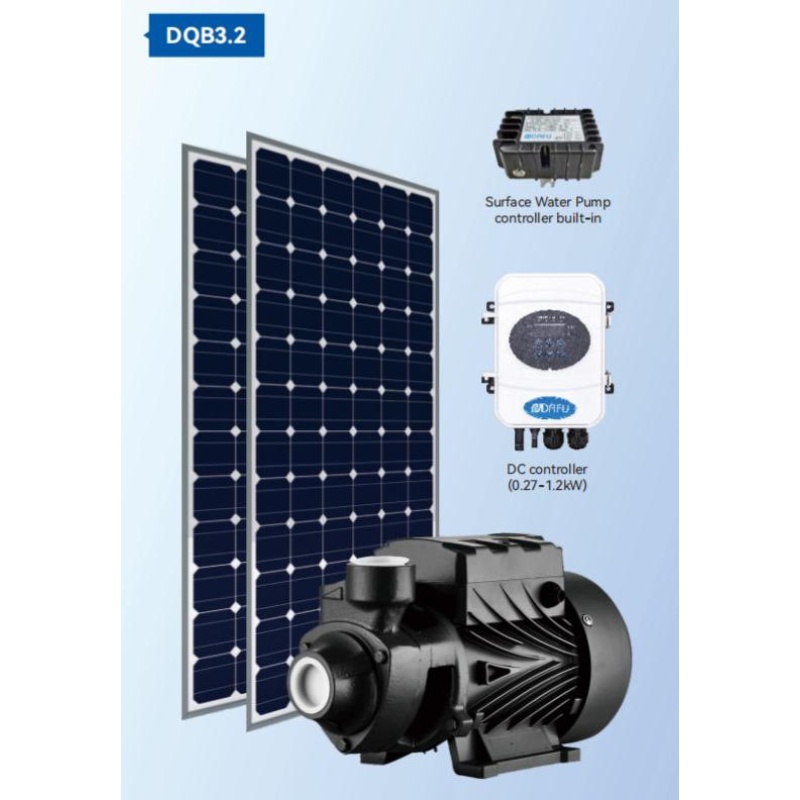

DQB serials solar pump igh efficiency permanent magnet brushless synchronous motor,304 stainless steel pump shaft,brass impeller.
Modèle :
DQB3.2－35－40－400 (N)Calibre importé (DN) :
G1”Calibre d'exportation (DN) :
G1”Débit nominal (m³/h) :
3Hauteur manométrique nominale (m) :
5Puissance de sortie nominale (KW) :
0.4Matériel :
brass impellerDQB serials solar pump

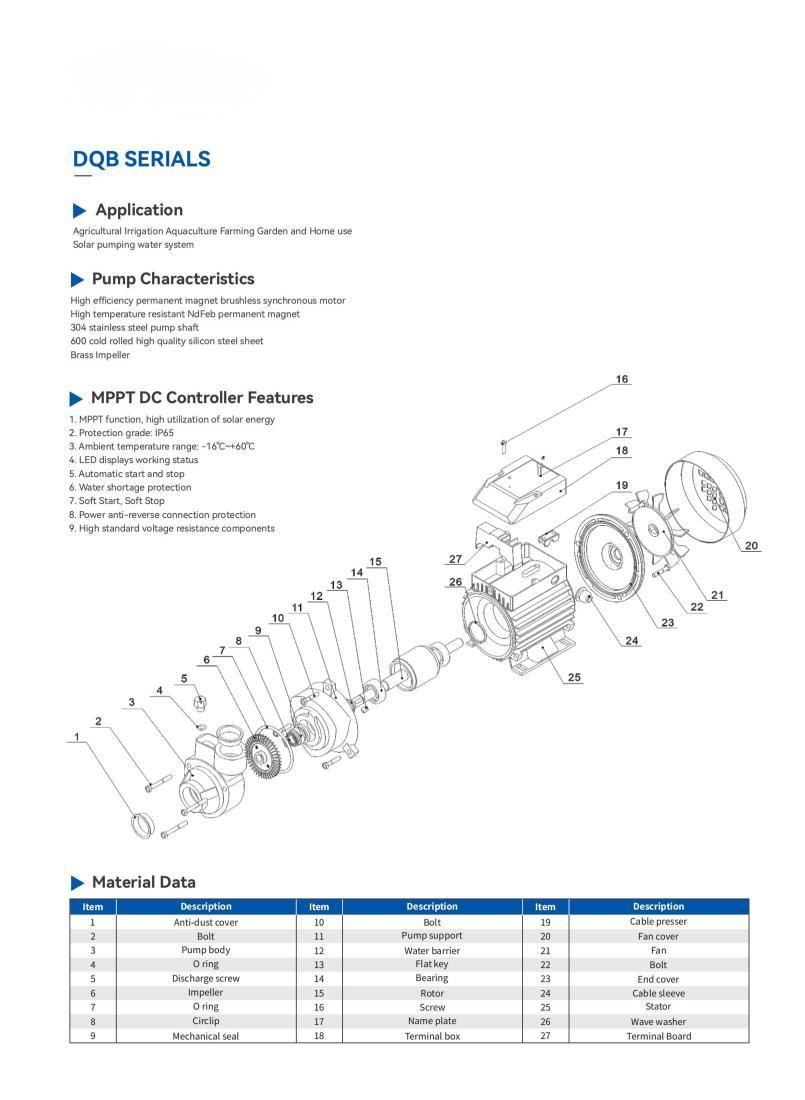

Pump Characteristics：
High efficiency permanent magnet brushless synchronous motor
High temperature resistant NdFeb permanent magnet
304 stainless steel pump shaft
600 cold rolled high quality silicon steel sheet
Brass Impeller
MPPT DC Controller Features：
MPPT function, high utilization of solar energy
Protection grade: IP65
Ambient temperature range: -16℃~+60℃
LED displays working status
Automatic start and stop
Water shortage protection
Soft Start, Soft Stop
Power and reverse connection protection
High standard voltage resistance components
Application：
agricultural irrigation、 aquaculture、 farming garden and home use
solar pumping water system
